March 25, 2013

73.7 terabits per second and 30% lower latency using new hollow core fiber design

Researchers at the University of Southampton in England have produced optical fibers that can transfer data at 99.7% of the universe’s speed limit: The speed of light. The researchers have used these new optical fibers to transfer data at 73.7 terabits per second — roughly 10 terabytes per second, and some 1,000 times faster than today’s state-of-the-art 40-gigabit fiber optic links, and at much lower latency.

The researchers overcame issues with vacuum transmission by fundamentally improving the hollow core design, using an ultra-thin photonic-bandgap rim. This new design enables low loss (3.5 dB/km), wide bandwidth (160nm), and latency that blows the doors off normal optic fiber — light, and thus the data, really is travelling 31% faster down this new hollow fiber. To achieve the transmission rate of 73.7 terabits per second, the researchers used wave division multiplexing (WDM) to transmit 37 40-gigabit signals down the hollow fiber. As far as we’re aware, this is one of the fastest ever transmission rates in the lab.

As for real-world applications, loss of 3.5 dB/km is okay, but it won’t be replacing normal glass fiber any time soon. For short stretches, though, such as in data centers and supercomputer interconnects, these speed-of-light fibers could provide a very significant speed and latency boost.

This will be rapidly adopted because the lower latency will be very valuable for computerized financial trading. It will also go into supercomputer data centers and cloud computer centers.


Nature Photonics - Towards high-capacity fibre-optic communications at the speed of light in vacuum

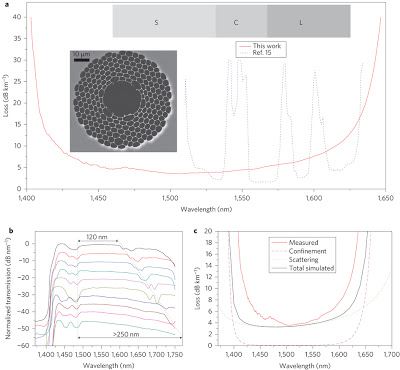

Wide-bandwidth signal transmission with low latency is emerging as a key requirement in a number of applications, including the development of future exaflop-scale supercomputers, financial algorithmic trading and cloud computing. Optical fibres provide unsurpassed transmission bandwidth, but light propagates 31% slower in a silica glass fibre than in vacuum, thus compromising latency. Air guidance in hollow-core fibres can reduce fibre latency very significantly. However, state-of-the-art technology cannot achieve the combined values of loss, bandwidth and mode-coupling characteristics required for high-capacity data transmission. Here, we report a fundamentally improved hollow-core photonic-bandgap fibre that provides a record combination of low loss (3.5 dB km−1) and wide bandwidth (160 nm), and use it to transmit 37 × 40 Gbit s−1 channels at a 1.54 µs km−1 faster speed than in a conventional fibre. This represents the first experimental demonstration of fibre-based wavelength division multiplexed data transmission at close to (99.7%) the speed of light in vacuum.
