August 08, 2011

John Slough fusion space propulsion

John Slough has been working on Helion Energy fusion. He was funded for $100,000 for a phase 1 NIAC project for Nuclear Propulsion through Direct Conversion of Fusion Energy.

Helion Energy - Nuclear fusion by supersonic field reversed configuration plasmoids is adaptable for space propulsion

The ElectroMagnetic Plasmoid Thruster

The EMPT thruster, funded by NASA, is a 1 kW-class RMF thruster, operates on the same physics principles as the ELF thruster. This device, less than 4 inches in diameter, has proven that pulsed inductive technolgoies can be succesfully miniaturized. Indeed, this thruster has demonstrated operation from 0.5 to 5 Joules, as well as the first pulsed inductive steady state operation. The EMPT has demonstrated greater than 1E8 continuous plasma discharges.

In 2010, they had a $100,000 SBIR grant for a Low Mass Electromagnetic Plasmoid Thruster with Integrated PPU

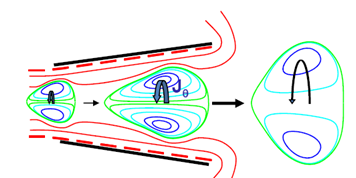

The Electromagnetic Plasmoid Thruster (EMPT) is a revolutionary electric propulsion thruster and power processing (PPU) system that will allow a dramatic decrease in system mass and increase in thrust efficiency over traditional 500-1000 W propulsion systems. The high specific power (over 700 W/kg) and high efficiency of EMPT will enable a wide range of deep space missions such as Neptune, Pluto and Oort Cloud orbital insertion. Additionally, a solar electric EMPT system would dramatically increase the capability and reduce the travel time of an asteroid or Martian moon sample and return mission due to the variable-power, low-mass propulsion system. The EMPT employs a Rotating Magnetic Field (RMF) to produce large plasma currents inside a conical thruster creating a plasmoid that is magnetically isolated from the thruster walls. The intensified gradient magnetic field from the plasmoid together with the large plasma currents result in an enormous body force that expels the plasmoid at high velocity. The EMPT is a pulsed device, nominally operating at 1 kWe with 1 Joule discharges at 1 kHz. Presented is a full description of the relevant plasma physics as well as the thruster and PPU design. All physical principals behind the EMPT have been demonstrated in the laboratory at the relevant scales. Additionally, the AFOSR-funded ELF thruster has demonstrated RMF formation and acceleration in a thruster application at higher energy levels. The focus of the proposal is the experimental validation of an integrated thruster and PPU operating in a multi-pulse mode. The EMPT will be characterized over a range of parameters: input power from 200-1000 Watts, 50-80 mN thrust, and 1500-4000 seconds specific impulse. The integrated thruster and PPU to be built and tested will have a total system mass of less than 1.5 kg. Successful completion of Phase I will mature the technology from a TRL level 3 to 5. Phase II will be a fully integrated, steady-state demonstration with life test.
