June 06, 2011

A detailed Qualitative Approach to the Cold Fusion Nuclear Reactions of H/Ni

Christos Stremmenos has presented a new theory about the Rossi and Focardi low energy nuclear reactions

The following two questions should be answered:

1. Which is the supposed mechanism that overcomes the powerful electrostatic repulse (Coulomb barrier) between the “shielded proton” and the Nickel nucleus?

2. For what reason there is almost no radiation of any kind (experimental observation), while according to the Focardi and Rossi’s hypothesis there should have been some γ radiation (511 KeV) produced by the predicted annihilation of the β+ and β- particles that are being created during the Fusion?

Stremmenos has thoughts based on general and elementary structures, data and principles of universal scientific acceptance, might shed some light to this exciting phenomenon. More specific, he refers to Bohr’s hydrogen atom, the speed of nuclear reactions (10^-20 sec) and the Uncertainty Principle of Heisenberg.



According to the Uncertainty Principle of Heisenberg, the temporary atoms of hydrogen will cover during that small time interval Δt, a wide range of energies ΔΕ, which means also a wide range of atomic diameters of temporary atoms, satisfying the De Broglie’s condition. A percentage of them (at fist a very small one) might have diameters smaller than 10ˆ-14 m, which is the maximum active radius of nuclear reactions. In that case, the chargeless temporary atoms, or mini-atoms, of hydrogen together with high energy but short lived electrons, are being statistically trapped by the Nickel nuclei at a time of 10ˆ-20 sec. In other words, the high speed of nuclear reactions permits the fusion of short lived but neutral mini-atoms of hydrogen with the Nickel nuclei of the crystalline lattice, as during that short time interval the Coulomb barrier (of the specific hydrogen mini-atom) does not exist.

Afterwards, it follows a procedure similar to the one described by Focardi and Rossi, but instead of considering the capture of a shielded proton by the Ni58 nucleus, we adopt the hypothesis of trapping a neutral temporary atom, or a mini atom, of hydrogen (with a diameter less than 10ˆ-14 m) which transforms the Ni58 nucleus into Cu59 (copper/59, short lived isotope*).

It follows the predicted “β decay” of the nuclei of the short lived isotope of copper, accompanied by the emission of β+ (positrons) and β- (perhaps the electrons of the mini atoms trapped inside that nucleus during the fusion). These particles are being annihilated with an emission of γ radiation (two photons of γ of energy 511 KeV each, for every couple of β+ and β-).

In other words, whoever has experimented with this system should have suffered the not-so-harmless influence of those radiations, but that never happened. The radioactivity measured at the experiments is almost zero and easily shielded.

In any case, a rigorous, in my opinion, theoretical approach for the interpretation of that phenomenon with quantum mechanical terms, would give clear quantitative answers to the above stated models. With my Colleges of theoretical chemistry, we are already planning to face the problem using the time-depended quantum mechanical perturbation theory, bearing in mind the following:

1. The total wave function (of the nucleus and the electrons) of temporarily, non-stable states.
2. The total time-depended Hamiltonian, for temporarily states.
3. Searching for the resonance conditions at that system.

Such an approach had a successful outcome at a similar problem of theoretical chemistry and we hope that it will be valid in this case as well.

We have already mentioned that from the temporary mini atoms of hydrogen, the ones with diameter less than 10ˆ-14 m, have a larger probability of fusion. But, in order for them to be created, high energy bond electrons should exist at the “delocalized plasma” of the crystalline lattice.

1. Boltzmann’s statistics:
There are reasons to believe that the H/Ni system, at first at temperatures of about 400-500oC, contains a very small percentage of electrons in the “delocalized plasma” with enough energy to create (together with the diffused protons), according to the wave-particle duality principle, the first temporary mini atoms of hydrogen, that will trigger the fusion with the nickel nuclei and the production of high energy γ photons (511 KeV).

2. Photoelectric Effect:

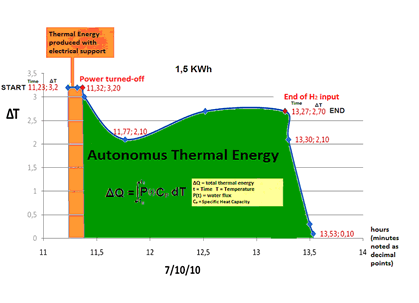

It is not possible, the HUGE amount of energy (in kW/h), that the Rossi/Focardi reactor produces, as measured by unrelated scientists in repeated demonstrations (at one of them by the writer and his colleagues, Fig 3), to be created due to the thermalization of the insignificant number of γ photons at the beginning of the reaction.

I believe that, as stated above, these photons are the trigger of fusion at a multiplicative series, based on the photoelectric effect inside the crystalline structure.

The two γ photons can export symmetrically (180°) two electrons from the nearest Nickel atoms. The stimulation, due to the high energy of γ, concerns electrons of internal bands of two different atoms of the lattice and has as a prerequisite the absorption of all the energy of the photon. A small part of that energy is being consumed for the export of the electron from the atom and the rest is being transformed into kinetic energy of the electron (thermal energy).

The result of that procedure is to enrich the “delocalized plasma” with high energy electrons that will contribute multiplicatively (by a factor of two) at the progress of the cold fusion nuclear reactions of hydrogen and nickel and at the same time transform the hazardous γ radiation into useful thermal energy.

3. The Compton Scattering:
It gives the additional possibility of multiplication, this time due to secondary photons γ, in a wide range of frequencies, as a function of the angular deviation from the direction of the initial photon of 511 keV. That has as a result the increase of the export of electrons, due to the photoelectric phenomenon at the crystalline mass, in many energy/kinetic levels, which gives an additional possibility of converting the γ radiation into useful thermal energy.

4. The Mössbauer effect:
It gives another possible way of absorbing the γ radiation and transforming it into thermal energy. It is based on the principle of conservation of momentum at the regression of the new Cu59 nucleus/ from the emission of a γ photon. Relative calculations (Dufour) showed that this mechanism has an insignificant (1%) contribution.

It follows that, according to given data, the Photoelectric phenomenon and the Compton Effect, could explain the absence of radiations in the Focardi-Rossi system, which, from the amount of producing energy versus the consumption of Ni and H2, as well as from the experimental observation of element transformations, lead undoubtedly to the acceptance of hydrogen cold fusion.
