Chameleon Magnets: Ability to Switch Magnets "On" or "Off" Could Revolutionize Computing

A top-view photograph of the Hall bar device used for the electric double
layer transistor


What causes a magnet to be a magnet, and how can we control a magnet's behavior? These are the questions that University at Buffalo researcher Igor Zutic, a theoretical physicist, has been exploring over many years.

He is one of many scientists who believe that magnets could revolutionize computing, forming the basis of high-capacity and low-energy memory, data storage and data transfer devices.

Journal Science - Electrically Induced Ferromagnetism at Room Temperature in Cobalt-Doped Titanium Dioxide

The electric field effect in ferromagnetic semiconductors enables switching of the magnetization, which is a key technology for spintronic applications. We demonstrated electric field–induced ferromagnetism at room temperature in a magnetic oxide semiconductor, (Ti,Co)O2, by means of electric double-layer gating with high-density electron accumulation (more than 10^14 per square centimeter). By applying a gate voltage of a few volts, a low-carrier paramagnetic state was transformed into a high-carrier ferromagnetic state, thereby revealing the considerable role of electron carriers in high-temperature ferromagnetism and demonstrating a route to room-temperature semiconductor spintronics.

Journal Science - Chameleon Magnets

The spin of an electron can serve as a magnetic messenger. Permanent magnetism, or ferromagnetism, comes from the spontaneous alignment of the electron spins and their associated magnetic moments in metals such as iron and cobalt, which results in their or magnetization. Ferromagnetism plays an important role in information storage, not only to keep refrigerator magnets in place (and notes held by them) but to store data in computer hard drives. A more common effect is paramagnetism—a material becomes magnetic only when an external magnetic field causes its spins to align. Silicon is paramagnetic, but its semiconductor properties, not its magnetism, make silicon useful in logic circuits. On page 1065 of this issue, Yamada et al. report a breakthrough that brings together these two different worlds of ferromagnetic metals and paramagnetic semi conductors and may better integrate logic and memory. By adding cobalt impurities to nonmetallic and nonmagnetic titanium dioxide, they created an intriguing material (Ti,Co)O2, which, like a chameleon, can reversibly transform from a paramagnet to a ferromagnet at room temperature.


A study by Japanese scientists showing that it is possible to turn a material's magnetism on and off at room temperature.

A material's magnetism is determined by a property all electrons possess: something called "spin." Electrons can have an "up" or "down" spin, and a material is magnetic when most of its electrons possess the same spin. Individual spins are akin to tiny bar magnets, which have north and south poles.

In the Japanese study, which also appears in the current issue of Science, a team led by researchers at Tohoku University added cobalt to titanium dioxide, a nonmagnetic semiconductor, to create a new material that, like a chameleon, can transform from a paramagnet (a nonmagnetic material) to a ferromagnet (a magnetic material) at room temperature.

To achieve change, the researchers applied an electric voltage to the material, exposing the material to extra electrons. As Zutic and Cerne explain in their commentary, these additional electrons -- called "carriers" -- are mobile and convey information between fixed cobalt ions that causes the spins of the cobalt electrons to align in one direction.

In an interview, Zutic calls the ability to switch a magnet "on" or "off" revolutionary. He explains the promise of magnet- or spin-based computing technology -- called "spintronics" -- by contrasting it with conventional electronics.

Modern, electronic gadgets record and read data as a blueprint of ones and zeros that are represented, in circuits, by the presence or absence of electrons. Processing information requires moving electrons, which consumes energy and produces heat.

Spintronic gadgets, in contrast, store and process data by exploiting electrons' "up" and "down" spins, which can stand for the ones and zeros devices read. Future energy-saving improvements in data processing could include devices that process information by "flipping" spin instead of shuttling electrons around.

In their Science commentary, Zutic and Cerne write that chameleon magnets could "help us make more versatile transistors and bring us closer to the seamless integration of memory and logic by providing smart hardware that can be dynamically reprogrammed for optimal performance of a specific task."

"Large applied magnetic fields can enforce the spin alignment in semiconductor transistors," they write. "With chameleon magnets, such alignment would be tunable and would require no magnetic field and could revolutionize the role ferromagnets play in technology."

In an interview, Zutic says that applying an electric voltage to a semiconductor injected with cobalt or other magnetic impurities may be just one way of creating a chameleon magnet.

Applying heat or light to such a material could have a similar effect, freeing electrons that can then convey information about spin alignment between ions, he says.

The concept of nonmagnetic materials becoming magnetic as they heat up is counterintuitive, Zutic says. Scientists had long assumed that orderly, magnetic materials would lose their neat, spin alignments when heated -- just as orderly, crystalline ice melts into disorderly water as temperatures rise.

The carrier electrons, however, are the key. Because heating a material introduces additional carriers that can cause nearby electrons to adopt aligned spins, heating chameleon materials -- up to a certain temperature -- should actually cause them to become magnetic, Zutic explains.

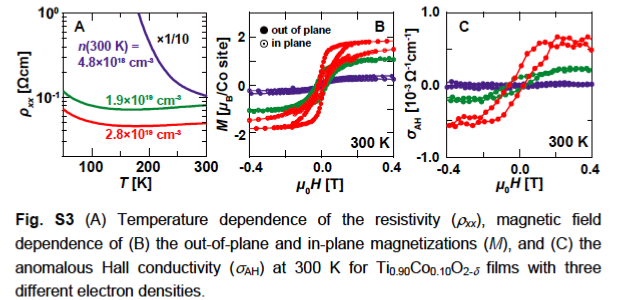

11 pages of supplemental material
