Nanomembrane tubes support the controlled three dimensional of neurites

Semiconductor Nanomembrane Tubes: Three-Dimensional Confinement for Controlled Neurite Outgrowth (H/T Alfin)

In many neural culture studies, neurite migration on a flat, open surface does not reflect the three-dimensional (3D) microenvironment in vivo. With that in mind, we fabricated arrays of semiconductor tubes using strained silicon (Si) and germanium (Ge) nanomembranes and employed them as a cell culture substrate for primary cortical neurons. Our experiments show that the SiGe substrate and the tube fabrication process are biologically viable for neuron cells. We also observe that neurons are attracted by the tube topography, even in the absence of adhesion factors, and can be guided to pass through the tubes during outgrowth. Coupled with selective seeding of individual neurons close to the tube opening, growth within a tube can be limited to a single axon. Furthermore, the tube feature resembles the natural myelin, both physically and electrically, and it is possible to control the tube diameter to be close to that of an axon, providing a confined 3D contact with the axon membrane and potentially insulating it from the extracellular solution.

Our experiments show that the SiGe substrate and the tube fabrication process are biologically viable for neuron cells. We also observe that neurons are attracted by the tube topography, even in the absence of adhesion factors. They can be guided to pass through the tubes during outgrowth, leading to defined neuronal networks. Coupled with selective seeding of individual neurons close to the tube opening, growth within a tube can be limited to a single axon. Furthermore, the tube feature resembles the natural myelin, both physically and electrically, and it is possible to control the tube diameter to be close to that of an axon, providing a confined 3D contact with the axon membrane and potentially insulating it from the extracellular solution.

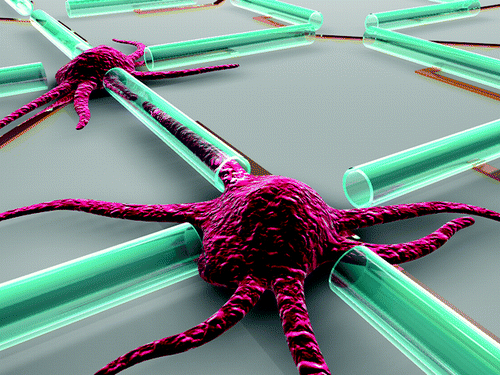

An artistic rendering of a matrix of semiconductor tubes, fabricated by self-rolling of strain engineered nanomembranes, with each connected to an electrode. Neural cells are seeded at the intersection of four tubes, whose diameter is close to that of a single axon. The tube topography can attract the outgrowth of neural processes (neurites) and eventually guide them into defined neural networks. Aside from being 3D morphological cues for cell growth, the thin-walled tubes are transparent and light can be used to stimulate genetically expressed light-sensitive neurites inside. The electrodes can then pick up the corresponding neural signals.

Alfin speculates –

The actual goal of the researchers in Wisconsin is to grow a nerve:computer interfaces. This is one approach to the brain:machine, or cyborg approach to extreme rehabilitation, or even augmentation for emergency workers or military personnel.

Another approach which is even more exotic than described above, would be to grow an intricate “nano-neural web” into the intact brain structure, to create millions of interfaces to all of the important centers of the brain. The idea behind such a grown nano-structure, besides providing an external brain:machine interface, would be to allow the conscious mind access to unconscious brain functions.
